Products / Load Cells & Accessories / Load cells & Junction Box

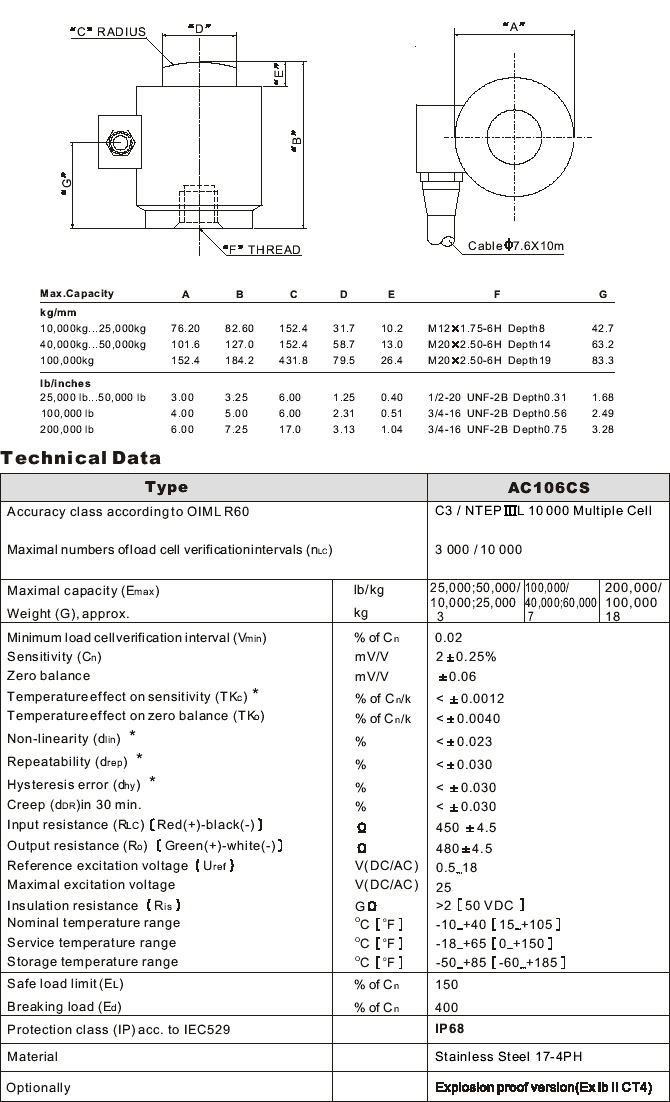

AC-106CS

10,000kg~100,000kg/25,000lb~200,000lb
Main features:
  AC-106CS 10,000kg...100,000kg
‧High accuracy regulations up to 3 000d for scale class III
‧Stainless steel, welded seal construction,integral conduit adaptor, protection to IP68
‧Harsh environment
‧Hazardous area approved to Ex ib II CT4
‧Available options:
- Service temperature range up to 120℃ [248℉]
- Available with metric and UNC threads
