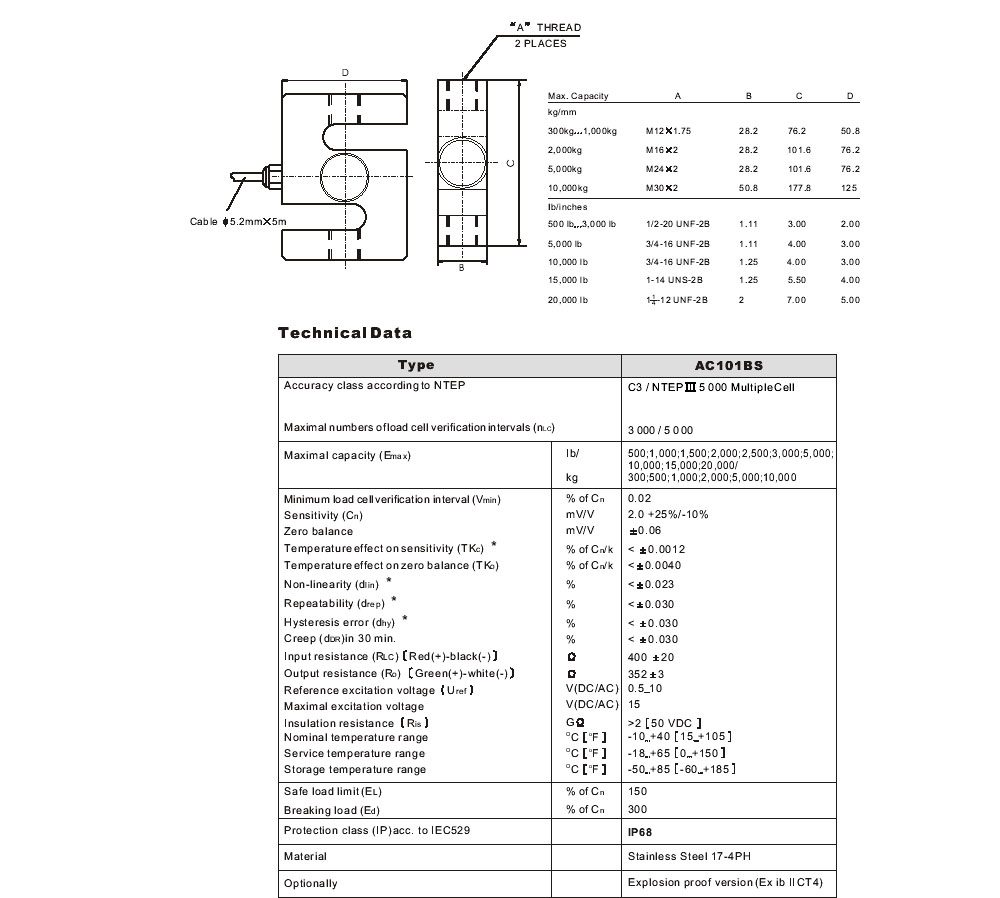

AC-101BS

300kg~10,000kg
Main features:
  ‧High accuracy regulations up to 5 000d for scales class III
‧Stainless steel, welded seal construction, protection to IP68
‧Hostile or clean environment
‧Tension & compression measurements,
compatible with REM/REN & TEA tension
hardware
‧Hazardous area approved to Ex ib II CT4
‧Available Options:
-Service temperature range up to 120℃ [248 ℉]
-available with metric and UNC threads
-6-wire circuit
