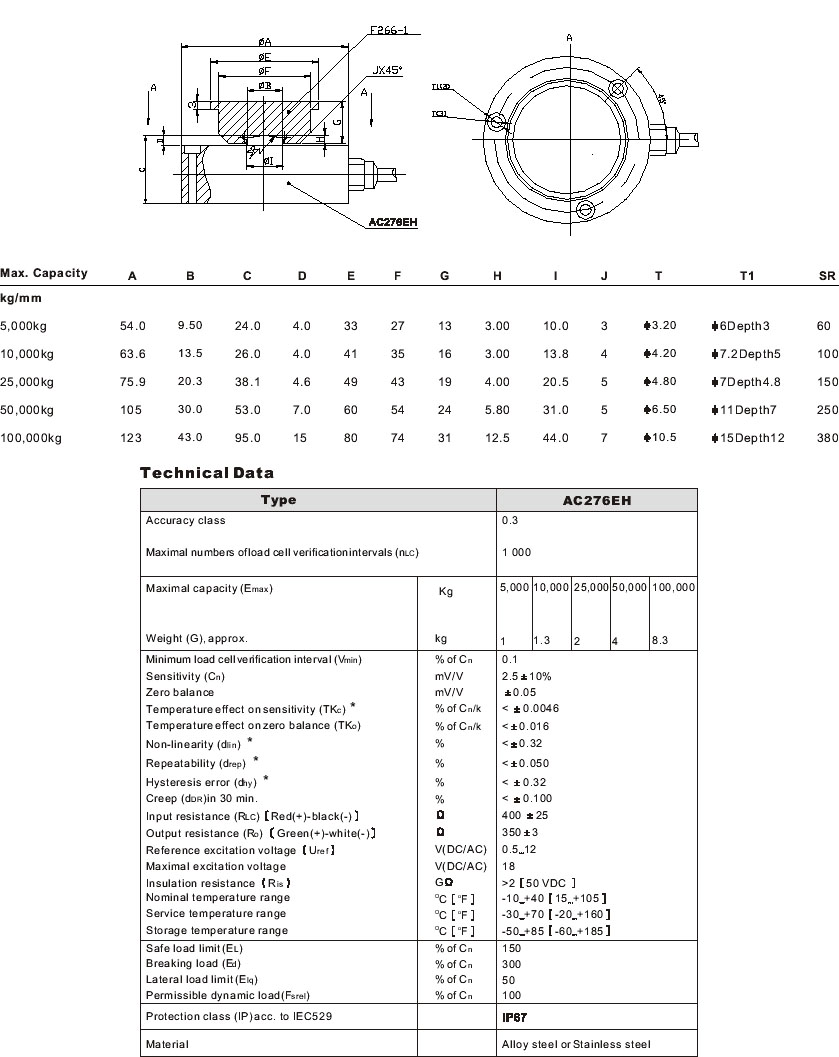

AC-276EH
| 5,000kg~100,000kg | |
 Main features: |
|
| AC-276EH 5,000kg...100,000kg ‧Patent design, No.:ZL02 2 04610.0 ‧Load cells and mounting aids made from alloy steel or stainless steel ‧Small size , low profile ‧Small deflection,the compact stainless steel construction and a structural integrity capable of withstanding extraneous loads are all unique features of the 276EH series. ‧High permissible dynamic load ‧IP67 Protection ‧Hazardous area approved to Ex ib ll CT4 ‧Available options: -Service temperature range up to 120℃ [248℉] -6-wire circuit -Stainless steel |
|
