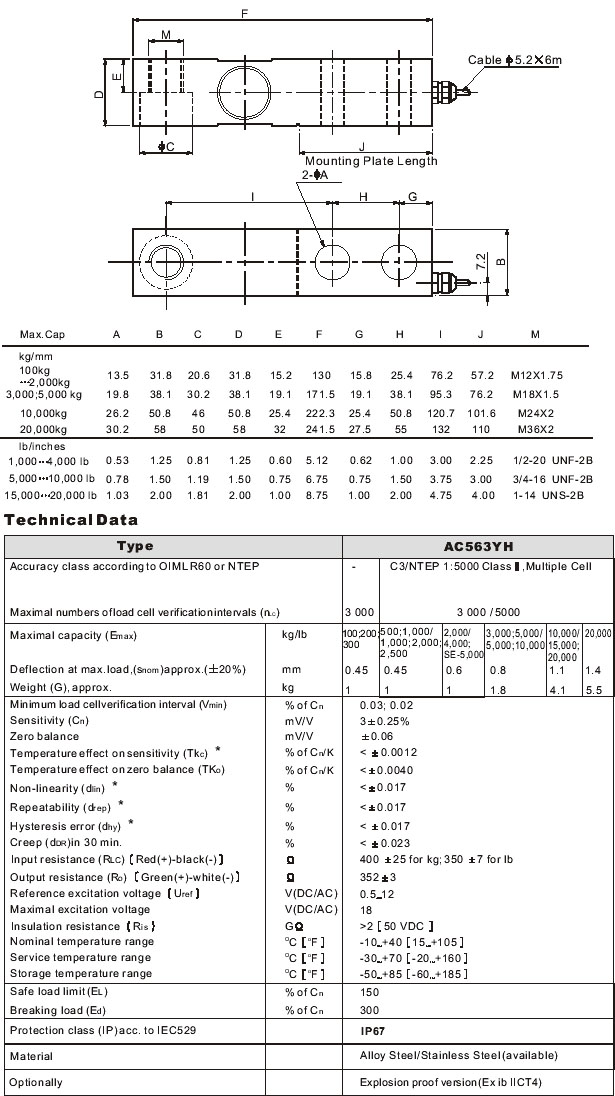

AC-563YH
| 100kg~20,000kg/1,000lb~20,000lb | |
 Main features: |
|
| ‧563YH complies with OIML R60 C3 (Emax≥500kg) regulations up to 3 000d for scales class III or equivalent to NTEP regulations up to 1:5 000 for class III Multiple Cell ‧ Low profile & high sensitivity ‧ Protection to IP67 ‧ Explosion proof version (Ex ib II CT4) ‧ Available Options: - Service temperature range up to 120℃ [248℉] - Lightning proof - 6-wire circuit - Stainless Steel 563YSGS |
|
