AC-HC

Main features:

ARM Technology data process speed 300 times then 51s chip.
Suitable in dynamic weighing

Features and Functions:
. Animal weighing
. Parts counting
. Accumulating
. Hold function
. Preset tare
. Checking function including: weight, pc. Count, percentage, animal weight check.
. 0-9 number keys (combined function kyes) and 3 function keys
. 1/40000 High Σ-Δ A/D conversion technology
. Units: kg, g, lb, oz
. 6 digits 25mm LCD display, 21 status indications
. 7 brightness of backlight mode selectable
. 8 at 350 ohm load cells connection
. Linearity calibration ON or OFF
. Non-Reset Trailer count to record calibration and Metrology Parameters Changes
External option:
. RS232 wireless to communicate with remote display or PC or connect to relay box for four channel set point and printer separately.

Housing:

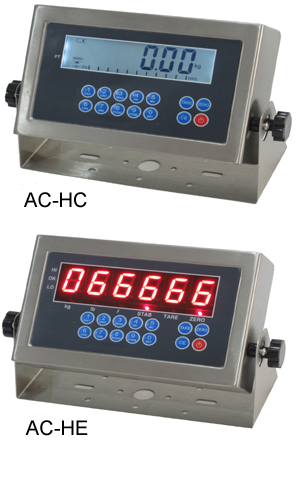

.Model:AC-HC, AC-HE: Stainless steel housing
.Model:AC-PC, AC-PE: Plastic housing
Display:
.Model: AC-HC, AC-PC: LCD display
.Model: AC-HE, AC-PE: LED display

Download


Specifications:

Maximum Capacity	Single Range Mode:- l Max = 1 ~ 999,999 (kg or lb) Dual Range Mode: - l Max₁= 1 ~ 999,998( kg or lb) l Max₂= 2 ~ 999,999( kg or lb)
External Resolution	Single Range Mode:- l Recommend = 15,000 ~ 30,000 l High = 30,000 ~ 60,000 Dual Range Mode: - l Recommend (Max₂ / d₁) = 15,000 ~ 30,000 l High (Max₂ / d₁) = 30,000 ~ 60,000
Weight Units	Metric (kg) and Imperial (lb),g,oz
Min. Internal Count/d	15 Count
Offset Range	≥0.2mv (10000 Count)
Tare Range	- Max (Subtractive Tare)
Max. Measuring Range	15 mV
A/D Sampling Speed	15 times/ second
Power Voltage Requirements	Built-in Rechargeable Battery = 6V DC External Power Adaptor = 12V DC, 800mA
Load Cell Excitation Voltage	5 VDC
Minimum/Maximum Load Cell Impedance	350Ω/1000Ω
Load Cell Connection	Supports 4-wire and 6-wire Load Cell Connections
Maximum Load Cell Connection	8 x 350Ω Load Cells, or 16 x 700Ω Load Cells
Operation Environment	-10 ~ 40oC. Non-condensed. R.H.≦ 85%
